i cant get it working. I always get the following error log:
whenoption -l with value `log.txt'
option -c with value `WINDOWS_X360PadUsbXinput.xml'
option -p with value `COM15'
status flag is set
subpos flag is set
force_updates flag is set
window_events flag is set
ReadFile failed: timeout expired.
can't read packet header
No controller detected.
adapter_detect failed
1. Turning on Console
2. Pluging in Xbox 360 Controller into PC
2. Pluging in ARduino Leonardo into Xbox 360
3. Pluging in CP2102 into PC

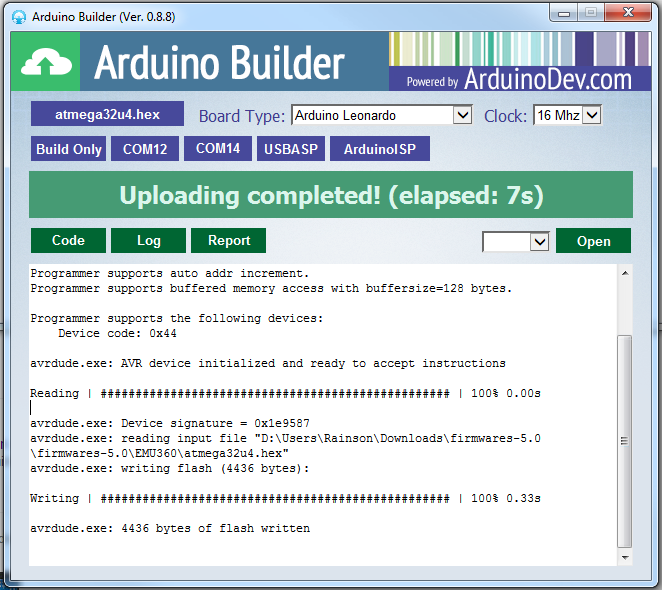

Image of flashing the firmware:
http://fs5.directupload.net/images/151028/8qrabwvl.png
Im using a Arduino Leonardo and mini USB UART Converter (http://www.produktinfo.conrad.com/daten ... _fr_nl.pdf) but i also tried a rs232 ftdi board but that didnt help as well. Any help is appreatiated! I rly dont know where to search.
Wiring is like =
CP2102 -> Arduino Leonardo
Gnd -> Gnd
RXD -> RX
TXD -> TX
X1 -> GND
i also tried with and without x1 -> GND and also switching RXD -> TX and TXD -> RX all with the same effect.
